Introduction

If electricity were like water flowing through pipes, a resistor would be the faucet that slows things down to a manageable level. Resistors are one of the most widely used components in electronics—appearing in everything from your TV remote to your laptop charger.

In this guide, we’ll explore:

  • What resistors are
  • Different types of resistors
  • Their uses in real life
  • And how to decode those mysterious color bands you see on them.

By the end, you’ll be the “resistor whisperer” every beginner wishes they had inside their toolbox.

See The Video Tutorial

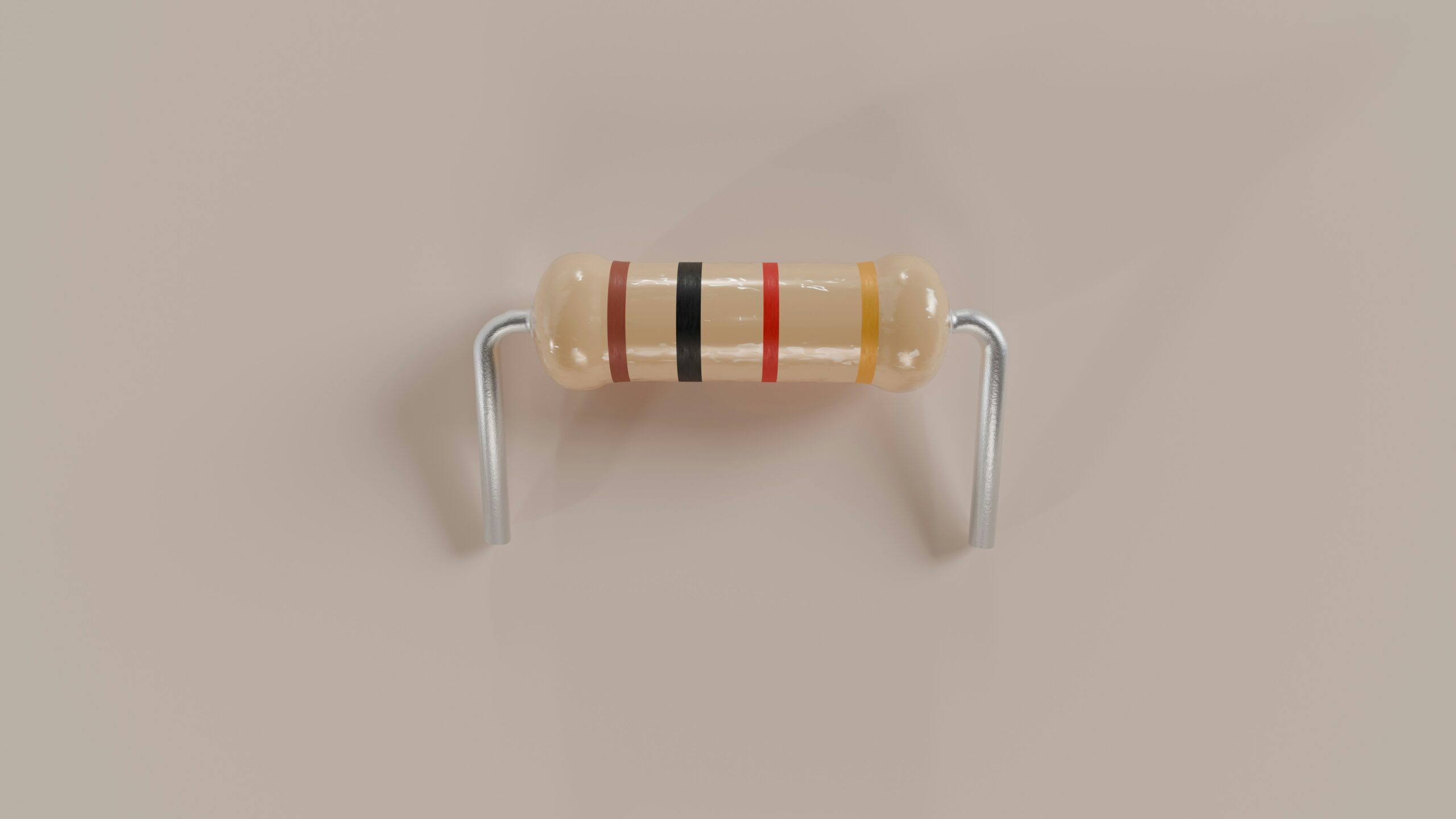

What is a Resistor?

A resistor is an electrical component that limits or regulates the flow of electrical current in a circuit. Its resistance, measured in ohms (Ω), determines how much it resists the current.

Think of it as a brake pedal for electrons: press lightly (low resistance), the car moves easily; press harder (high resistance), the flow slows down.

Why Are Resistors Used?

Resistors serve several crucial roles in electronics:

  • Current Limiting: Prevent too much current from burning out LEDs or delicate components.
  • Voltage Division: Split voltage into smaller, usable parts for circuits.
  • Heat Generation: Some special resistors convert electrical energy into heat (like in heaters, toasters).
  • Pull-up & Pull-down: Help stabilize signals in digital electronics.
  • Timing Circuits: Paired with capacitors, resistors help control time delays.

Types of Resistors

Resistors come in several types, each suited for particular jobs:

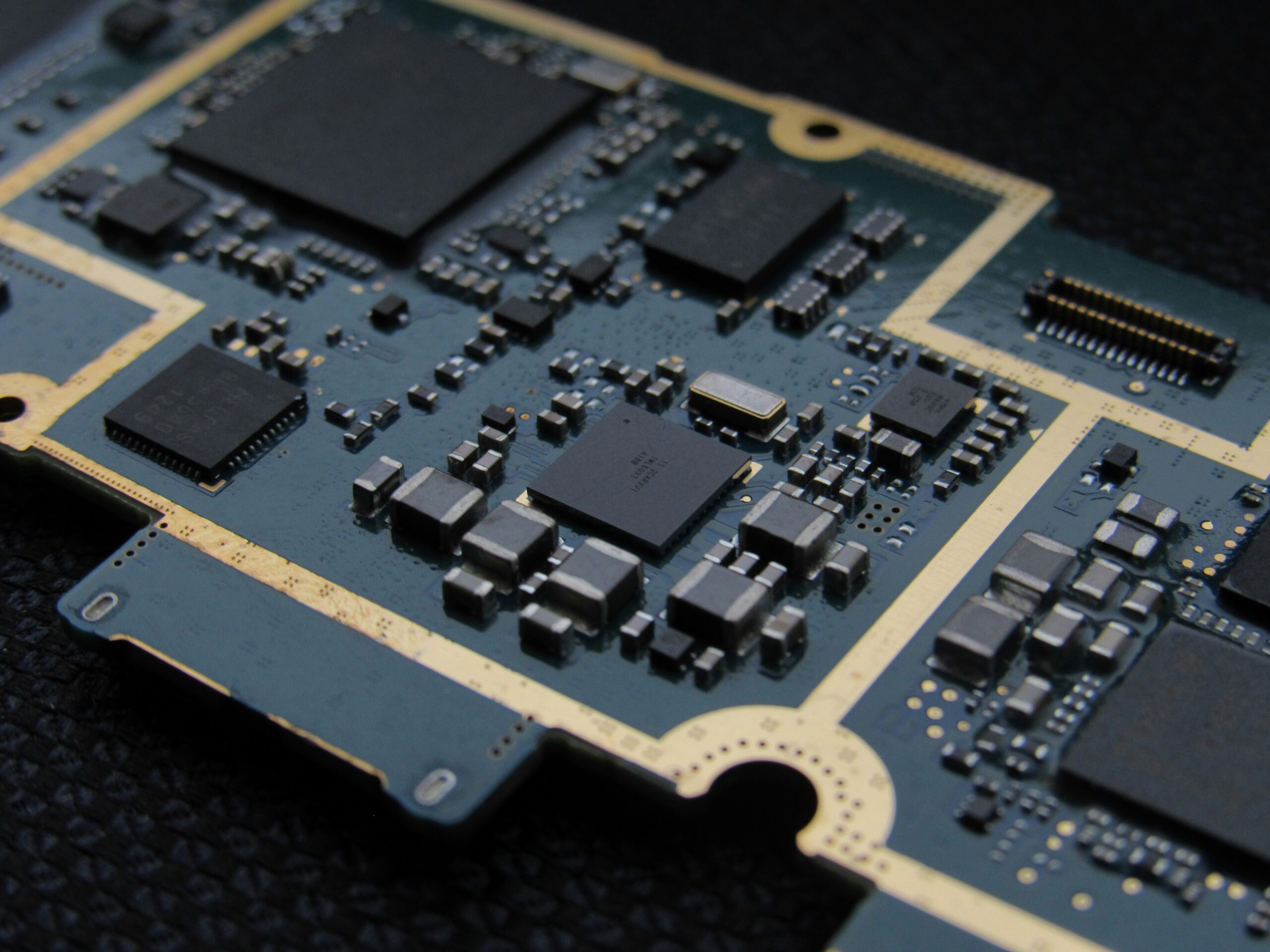

  1. Fixed Resistors
  • Value is constant, does not change.
  • Common in almost every circuit.
  • Materials: Carbon composition, metal film, carbon film, or wirewound.
  1. Variable Resistors (Potentiometers)

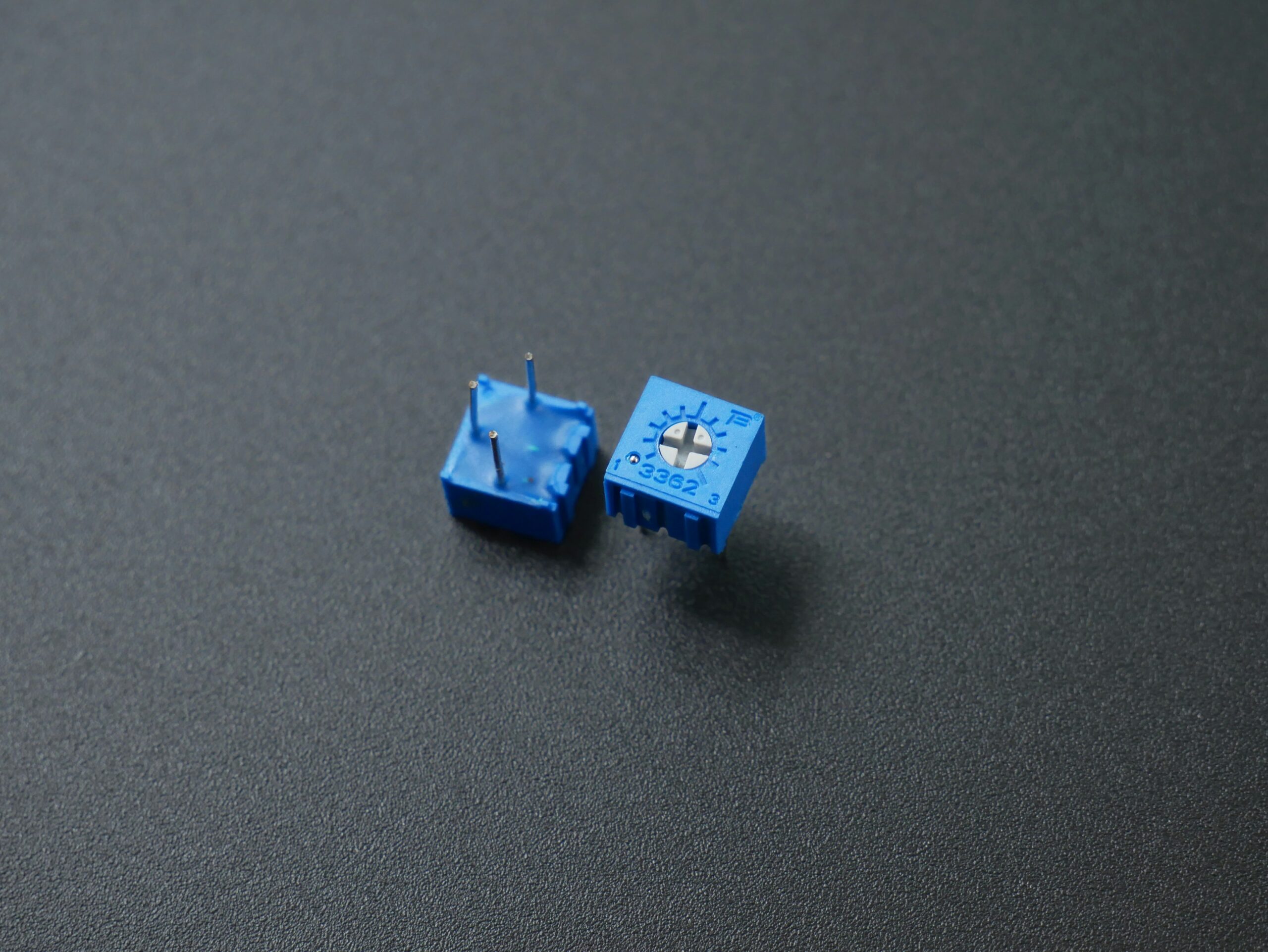

  • Value can be adjusted manually—like a volume knob.
  • Used in dimmers, audio controls, etc.
  1. Thermistors
  • Resistance changes with temperature.
  • Used in temperature sensors and protection circuits.
  1. LDR (Light Dependent Resistor)
  • Resistance decreases with more light.
  • Used in automatic street lights and solar lamps.
  1. Fusible Resistors
  • Act as both a resistor and a fuse: break the circuit if current exceeds safe limits.
Downloade

4-Band Resistor Example

Suppose you see these colored bands: Red – Violet – Yellow – Gold

  • 1st digit = Red = 2
  • 2nd digit = Violet = 7
  • Multiplier = Yellow = ×10,000
  • Tolerance = Gold = ±5%

So: 27 × 10,000 = 270,000 Ω (270kΩ) ±5%

Real-Life Applications of Resistors

  1. LED Circuits – Prevent LEDs from burning out.
  2. Voltage Regulators – Divide voltages so microchips get exact power.
  3. Audio Devices – Control volume and equalizers.
  4. Sensors – Thermistors and LDRs for smart systems.
  5. Power Electronics – Resistors handle heat, surge, and protection.

Without resistors, circuits would either blow up or behave like toddlers on a sugar rush—completely out of control.

5-Band Resistor Example

For more precision, some resistors use 5 bands.

  • First 3 = value digits
  • 4th = multiplier
  • 5th = tolerance

Real-Life Applications of Resistors

  1. LED Circuits – Prevent LEDs from burning out.
  2. Voltage Regulators – Divide voltages so microchips get exact power.
  3. Audio Devices – Control volume and equalizers.
  4. Sensors – Thermistors and LDRs for smart systems.
  5. Power Electronics – Resistors handle heat, surge, and protection.

Without resistors, circuits would either blow up or behave like toddlers on a sugar rush—completely out of control.

FAQs

Q: Why do resistors get hot?
A: They convert excess electrical energy into heat while controlling current.

Q: Can we connect resistors together?
A: Yes! In series, resistance adds up (Rtotal = R1+R2). In parallel, resistance decreases (1/Rtotal = 1/R1 + 1/R2).

Q: Which resistor should I use for an LED?
A: Use Ohm’s law: R = (Supply Voltage – LED Voltage Drop) ÷ LED Current.

Conclusion

Resistors may look humble, but they’re the unsung heroes of electronics—protecting, controlling, and enabling smooth functionality in every device you use daily.

Now you know their types, uses, and how to decode those mysterious color stripes. So next time you see a resistor, you won’t just see colorful bands—you’ll see the silent guardian of your circuit.
